BT004
- 4 relay outputs at 16A
Technical Documentation
Overview
The BT004 provides four volt free contact relay outputs with
a current rating of up to 16Amp each controlled over a HC06
Bluetooth serial port. The module is powered from a 12vdc supply
which can be regulated or unregulated. The DC input jack is 2.1mm
with positive core polarity, DC supplies are required to supply at
least 500mA at 12vdc. The relays are SPCO (Single Pole Change
Over) types. The normally open, normally closed and common pins
are all available on the screw terminals.
LED Indication
The BT004 provides a red LED mounted immediately next to each
relay to indicate whether it is in a powered state (LED on), there
are also two LED's near the power connector, one indicates power
and the other will flash when the board is waiting for a
connection and remain lit when a connection is present.
Relay Power Rating
If the contact load voltage and current of the relay are in the
region enclosed by the solid and dotted lines in the figure below, the relay can perform
stable switching operation. If the relay is used at a voltage or
current exceeding this
region, the life of the contacts may be significantly shortened.
load type | Typical applications | Rating | Max DC load capacity
|
AC1 | Non inductive or slightly inductive loads |
16A @ 250V AC | |
AC15 | Control of electromagnetic load (>72VA) |
3A @ 120V AC 1.5A @ 240V AC |
|
AC3 | Control of motor | 750W | |
DC1 | Non inductive or slightly inductive loads |
16A @ 24V DC | |
DC13 | Control of electromagnetic loads |
0.22A @ 120V DC 0.1A @ 250V DC |
A full datasheet for the relays used on the BT004 is here: HF115FD datasheet
Module Pin Code and Name
By default the module name will be "BT004" and the pin code will
be "1234" These can be changed by using our android application
"IO Bluetooth" which can be downloaded from the Google play store.
If you forget the pin code there is a factory reset that will
change both the name and pin back to the default setting.
Factory Reset
If you forget your pin and are unable to connect to the device
anymore then you can perform a factory reset to change the modules
name and pin back to the default of "BT004" and "1234". To do this
first power the module down completely. Next connect together the
top 2 contacts (nearest the relays) of the 5 holes next to the dc
power connector and apply power. Keep these pins shorted until the
red power LED goes off, the green connection LED will blink on and
off periodically. Once the power LED comes on again the module is
ready to use at its default settings.
BT004 Binary Command Set
Commands are sent to the BT004 using its HC06 Bluetooth serial
port.
Command |
Action |
|
dec | hex | |
16 | 10 | Get Module Info, returns 3 bytes. Module ID (27 for BT004), Hardware version, Firmware version. |
32 | 20 | Digital active - follow
with 1-4 to set relay on, then a time for pulsed output
from 1-255 (100ms resolution) or 0 for permanent Board will return 1 |
33 | 21 | Digital inactive - follow
with 1-4 to turn relay off, then a time for pulsed
output from 1-255 (100ms resolution) or 0 for
permanent Board will return 1 |
35 | 23 | Digital set outputs - the next single byte
will set all relays states, All on = 255 (xxxxxx11) All
off = 0 Board will return 1 |
36 | 24 | Digital get outputs - sends a single byte back to the controller, bit high meaning the corresponding relay is powered |
120 | 78 | Get Volts - returns module supply voltage as byte, 125 being 12.5V DC |
Digital Active/Inactive
This is a 3 byte command:
The first byte is the command, 32 (active means on) or 33
(inactive).
Second byte is the relay number (1-2).
Third byte is the on time. Set this to zero for un-timed
operation, or 1-255 for a pulse in 100mS intervals (100mS to 25.5
seconds).
For example:
0x20 - turn the relay on command
0x02 - relay 2
0x32 (50) - 5 seconds (50 * 100ms)
Board will return 0 for success, 1 for failure.
BT004 ASCII Command Set
All ASCII Commands begin with a colon (":") with any data needed
separated by commas (",") and end with a carriage return ("\r").
Command |
Examples |
Get Module
Info (GMI) |
":GMI\r"
returns a string with the module ID, software version and
hardware version separated by commas and ending with a
carriage return e.g. "30,1,1\r" |
Digital
Output Active (DOA) |
":DOA,3,0\r"
Make digital output 3 active, returns "OK\r" for success and
"NAK\r" for failure ":DOA,1,5\r" Make digital output 1 active for 500mS, returns "OK\r" for success and "NAK" for failure |
Digital
Output Inactive (DOI) |
":DOI,2,0\r"
Make digital output 2 inactive, returns "OK\r" for success
and "NAK\r" for failure ":DOI,4,10\r" Make output 4 inactive for 1 second, returns "OK\r" for success and "NAK\r" for failure |
Get Digital
Output (GDO) |
":GDO,1\r"
Gets the state of output 1, returns "ACTIVE\r" or
"INACTIVE\r" |
Get Supply
Voltage (GSV) |
":GSV\r"
returns module supply voltage as string ending with a
carriage return, 125 being 12.5V DC e.g. "125\r" |

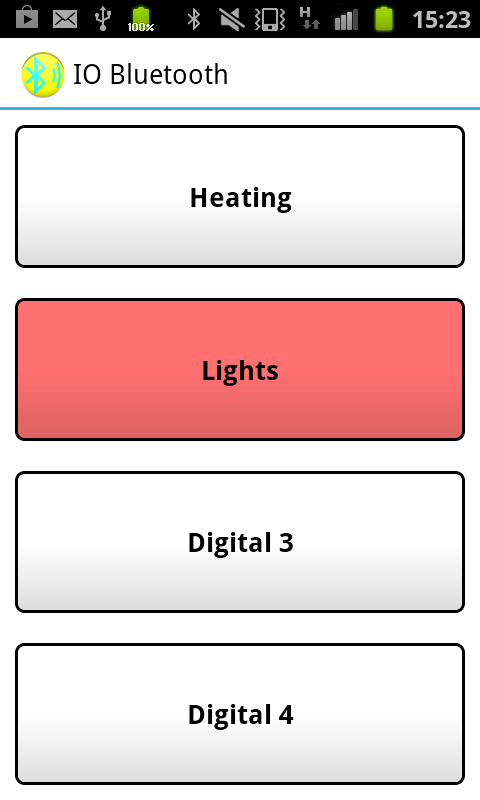

Android App
We provide an Android app "IO Bluetooth" for controlling the BT004
which can be downloaded from the Google play store. It allows you
to name the digital outputs and set the pulse times for each of
them. Using this app you can also update the modules pin and name.

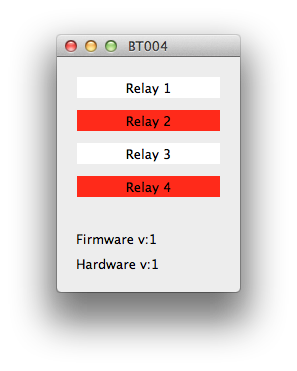

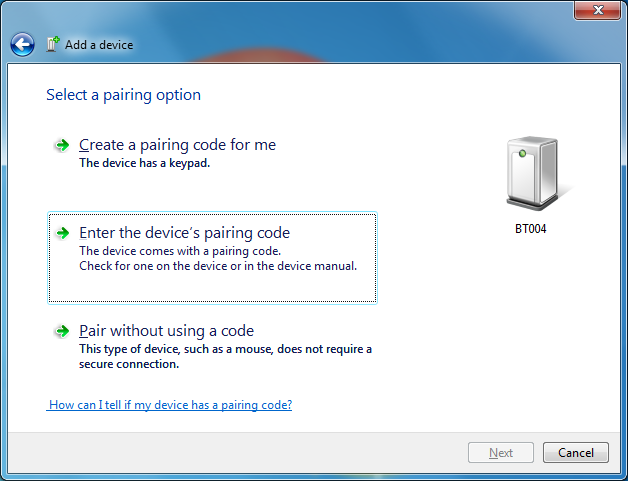

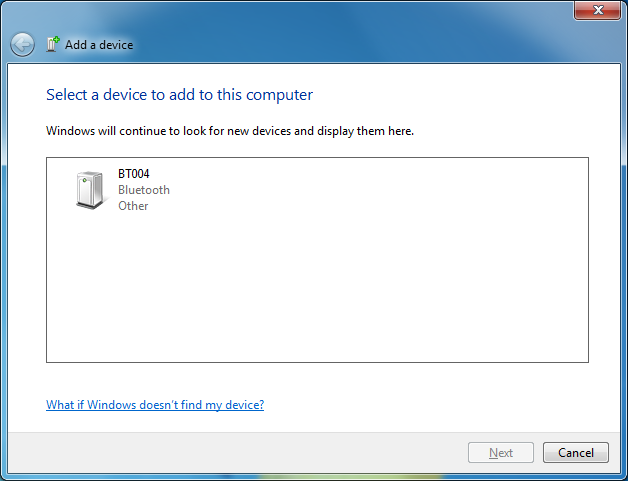

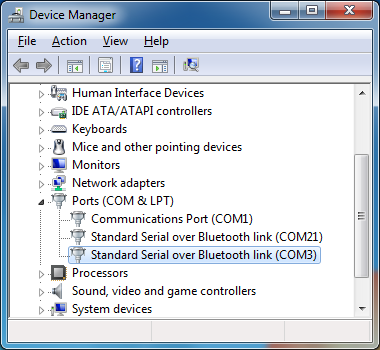

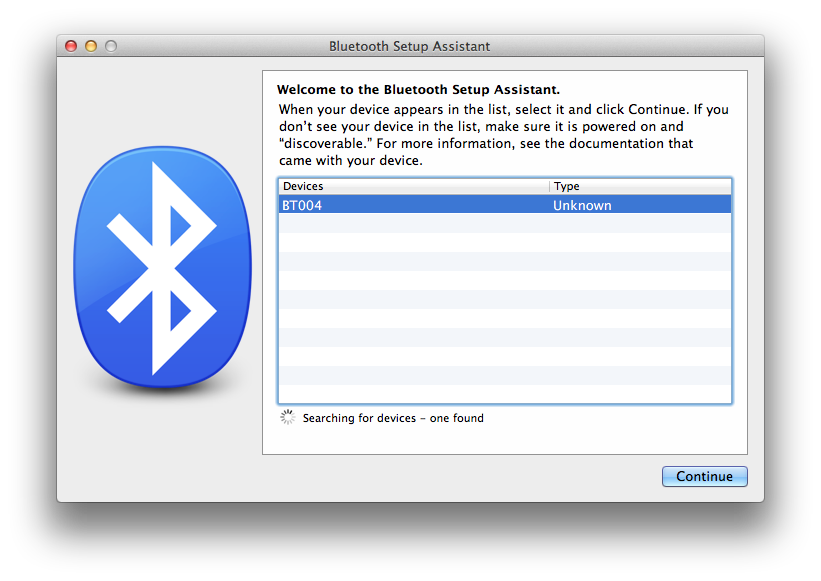

Windows Test Program
If you have a windows PC with Bluetooth support you can also
use our BT004 windows test app to control the board. If your
PC doesn't have Bluetooth capabilities you can use a
Bluetooth dongle for communicating with the BT004. It can be
downloaded as an installer package here, or the source
code here

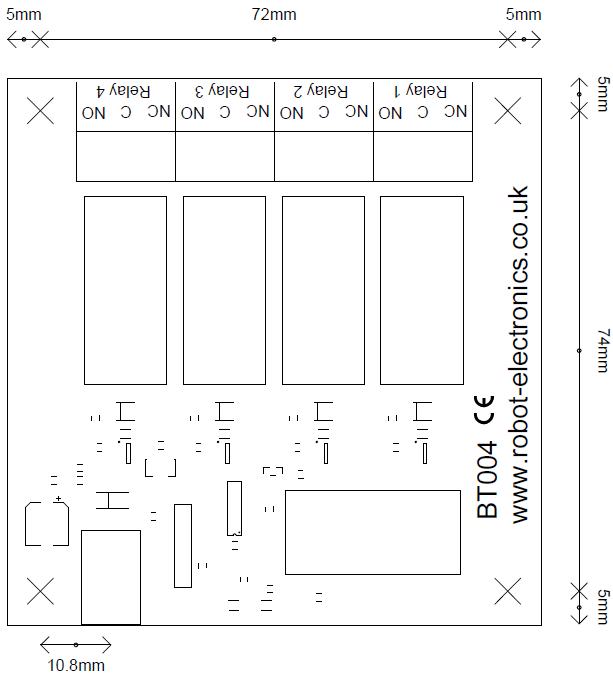

Drilling Plan
